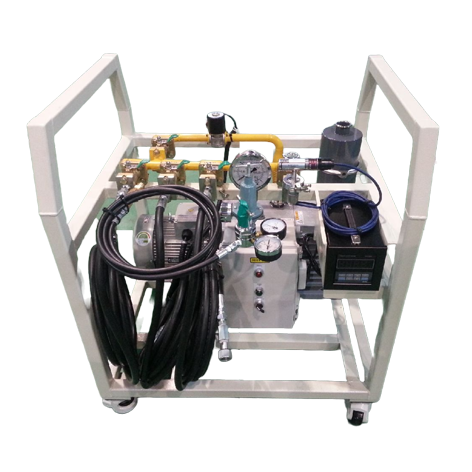

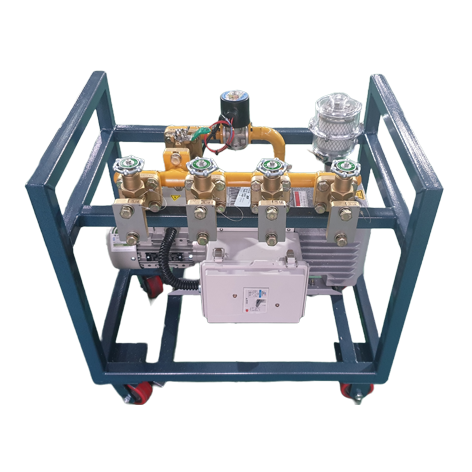

Portable Vacuum Pump for GIS
Portable Vacuum Pump for GIS
It is a device that is produced vacuum inside GIS GCB. filling SF6 gas.
PERFORMANCE & SPECIFICATION
| Description | Model | ||||||
|---|---|---|---|---|---|---|---|
| SVE-300 | SVE-600 | SVE-1000 | SVE-1500 | SVE-5000 | |||
| Rated Power Supply | USER SPEC | ||||||
| TOTAL POWER | 0.4Kw | 0.75Kw | 1.5Kw | 3.7Kw | 5.2Kw | ||
| Vacuum Pump | Pumping Speed | 290ℓ/min | 650ℓ/min | 960ℓ/min | 1600ℓ/min | 5000ℓ/min | |
| Ultimate Pressure | 3 x 10-3 Torr | ||||||
| Anti-back stream Device | Inside pump, Solenoid Valve | ||||||
| SF6 Gas Valve | 5 EA | ||||||
| Cooling | Air cooling | ||||||
| Weight | 45㎏ | 55㎏ | 90㎏ | 100㎏ | 130㎏ | ||
