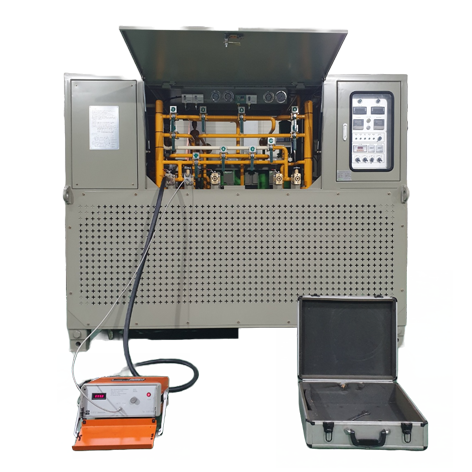

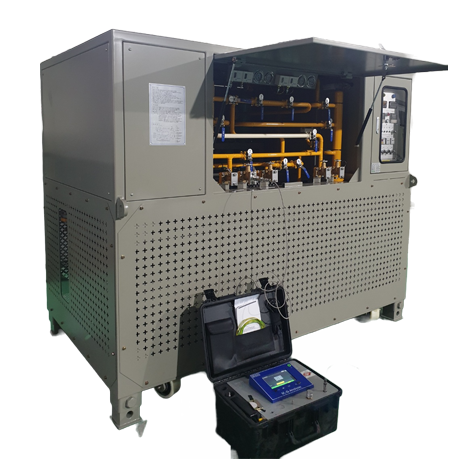

SF6-GAS Recovey Device
It is a device that was produced manufacturing, repairing GIS GCB., stored in liquid form, 99% recovery rate, charging and refining gas Using approval korea electric power coporation
PERFORMANCE & SPECIFICATION
| Description | Model | ||||||
|---|---|---|---|---|---|---|---|
| SLN-150 | SLN-400 | SLN-600 | SLN-800 | ||||
| Rated Power Supply | USER SPEC | ||||||
| Vacuum Pressure | 5x10-3Torr | ||||||
| Recovery Rate | 99% | ||||||
| RECOVERY TANK | Storage | 150ℓ | 400ℓ | 600ℓ | 800ℓ | ||
| Using Press. | 23 Kg/cm2 | ||||||
| Safety Valve | 33 Kg/cm2 | ||||||
| Using Temp. | -10℃ ~ 50℃ | ||||||
| Heating Unit | Rising Temp | CONTROL ±50 ℃ | |||||
| Heating Capacity | NO | 3Kw x 2ea | |||||
| Ref. Unit | Ref. Capacity | 2HP | 3HP | 5HP | 7.5HP | ||
| Condensation Methed | Condenser | Aero Pin Coil in tank | |||||
| Filtering Unit | Filtering Methed | Dust, Moisture, oil | |||||
| Moisture Content | Bellow 100 ppm | ||||||
| Filtering Capacity | 0.01μ 이하 | ||||||
| Recovery Rate | 99% | ||||||
