Vacuum Pump For T/R

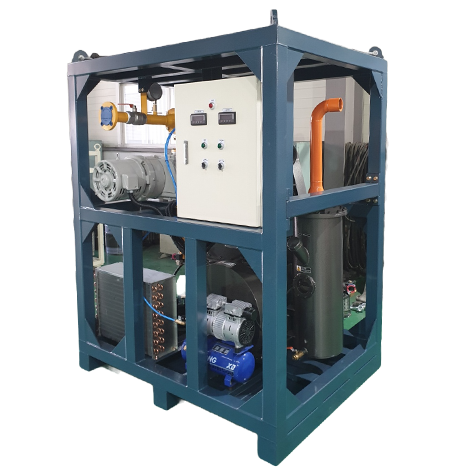

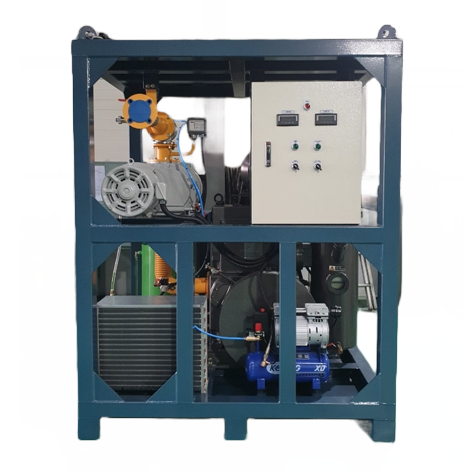

This equipment is manufactured to be used for vacuum evacuation of transformers and is a portable equipment that can perform vacuum work when making or installing transformers
PERFORMANCE & SPECIFICATION
| Description | Model | |||||
|---|---|---|---|---|---|---|
| TV25-06 | TV45-06 | TV45-12 | TV80-27 | |||
| TOTAL POWER | 5Kw | 10Kw | 12Kw | 20Kw | ||
| OIL ROTARY PUMP | Pumping Speed | 2,500ℓ/min | 4,500ℓ/min | 4,500ℓ/min | 8000ℓ/min | |
| Ultimate Pressure | 3 x10-3 Torr | |||||
| M/C BOOSTER PUMP | Pumping Speed | 600㎥/min | 600㎥/min | 1200㎥/min | 3200㎥/min | |
| Ultimate Pressure | 5 x10-4 Torr | |||||
| OPTION | Vacuum chamber, spring hose & flanges | |||||
