Creative spirit and continuous development of technology Dongyang Vacuum Technology
Oil Rotary Pump
Belt Driven Rotary Vane Pump
Piston Rotary Pump
Mechanical Booster Pump
Oil Diffusion Pump

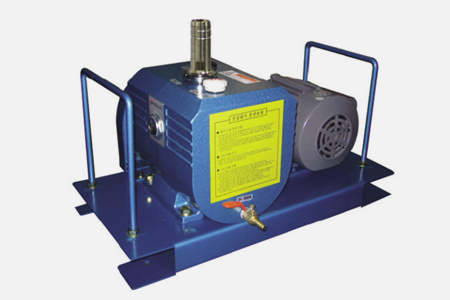

GRP-300N
PERFORMANCE & SPECIFICATION
| Unit | 60Hz | ||
|---|---|---|---|
| Designed Pumping Speed | ℓ / min | 300 | |
| Effective Pumping Speed | ℓ / min | 245 | |
| Ultimate vacuum | Gas V/V Close | Torr(Pa) | 3.0 X 10-3(4.0 X 10-1) |
| Motor power | 3Φ(Three Phase) | KW | 0.4 |
| Oil capacity | ℓ | 3.2 | |
| Cooling | Air cooling | ||
| Inlet connection | Φ26 | ||
| Outlet connection | G3/4 | ||
| Weight | kg | 40Kg | |
| Oil | ULTRA-200 | ||
Features
• Low noise, Low Vibration
• Continuous Operating
• Excellent Performance
• Low Ultimate Pressure, High Pumping Speed
• Gas Ballast
• Eliminate of Vapor and Condensed Gas
