Creative spirit and continuous development of technology Dongyang Vacuum Technology

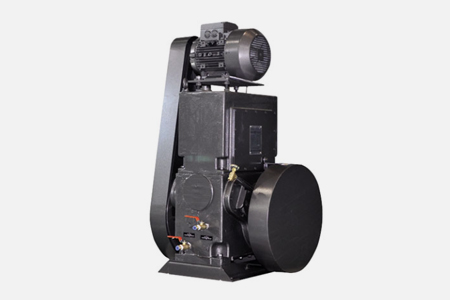

KRP-4500
PERFORMANCE & SPECIFICATION
| Unit | 60Hz | ||
|---|---|---|---|
| Designed Pumping Speed | ℓ / min | 4500 | |
| Effective Pumping Speed | ℓ / min | 3600 | |
| Ultimate vacuum | Gas V/V Close | Torr(Pa) | 7,5 X 10-3(1.0) |
| Motor power | 3Φ | KW | 5.5 |
| Oil capacity | ℓ | 35 | |
| Cooling | Water cooling | ||
| Cooling water flow | 3.5(at 20℃) | ||
| Inlet connection | VF-80 | ||
| Outlet connection | kg | VF-80 | |
| Weight | 440 | ||
| Oil | ULTRA-200 | ||
Features
• Little vibration and noise against to exhaust capacity.
• Strong durability by special structure type.
• Simple structure and pin-assemble type with a precise machining parts having good replacement.
• Easy to replace motor which customer requested.
• Easy to install a MBP motor when high capacity was exhausted.
• For short exhausting time with enormous air.
• For exhausting or suction of high purity activated gas.
• For vaccum exhausting, vaccum heat-treatment, residual fas analysis, vaccum evaporation sintering, vaccum dry, vaccum deformation and etc.
